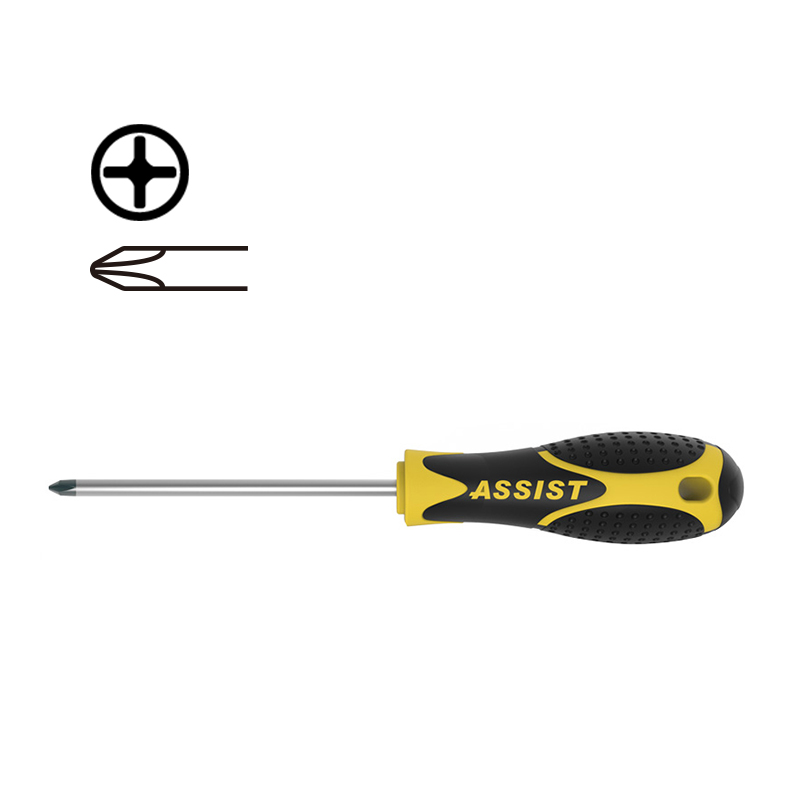

Phillips Screwdriver-M03 Screwdriver

Home > Products >Screwdriver >Series >M03 Screwdriver Return

Classification

Series

Phillips Screwdriver

Model Number：M03 Case Material：Magnetic screwdriver Size：∮3/∮4/∮5/∮6/∮8mm Handle Material：TPR+PP Head type：Phillips Material：S2 Hardness：≥59

1. PP + TPR multi material handle is adopted, which conforms to ergonomics, and screws can be disassembled quickly. Smooth hard area can slide quickly on the hand, and soft area can transfer more torque.
2. Special dot design can increase friction effectively;
3. The surface of the cutter bar is matte chrome, the head is black chrome, and the antirust performance is better
4. The cutter bar uses the world's first vacuum heat treatment, and its comprehensive performance is 6.5 times better than that of ordinary heat treatment
5. This series of products can be used as round cutter bar

6. S2 material hardness hrc≥59. The torque exceeds the German standard,S2 is over 70%.

Product Details


Code	mm	mm	mm	mm	mm
M03DH	∮3	PH0	75	82.5*27	157.5	12
M03DH	∮3	PH0	100	82.5*27	182.5	12
M03DH	∮4	PH0	75	98.5*32.4	173.5	12
M03DH	∮4	PH0	100	98.5*32.4	198.5	12
M03DH	∮5	PH1	75	98.5*32.4	173.5	12
M03DH	∮5	PH1	100	98.5*32.4	198.5	12
M03DH	∮5	PH1	125	98.5*32.4	223.5	12
M03DH	∮5	PH1	150	98.5*32.4	248.5	12
M03DH	∮6	PH2	100	110*36	210	12
M03DH	∮6	PH2	125	110*36	235	12
M03DH	∮6	PH2	150	110*36	260	12
M03DH	∮6	PH2	200	110*36	310	12
M03DH	∮6	PH2	250	110*36	360	12
M03DH	∮6	PH2	300	110*36	410	12
M03DH	∮8	PH3	150	110*36	260	12
M03DH	∮8	PH3	200	110*36	310	12
M03DH	∮8	PH3	250	110*36	360	12
M03DH	∮8	PH3	300	110*36	410	12
M03DH	∮5	PH1	38	66*33	104	12
M03DH	∮6	PH2	38	66*33	104	12
