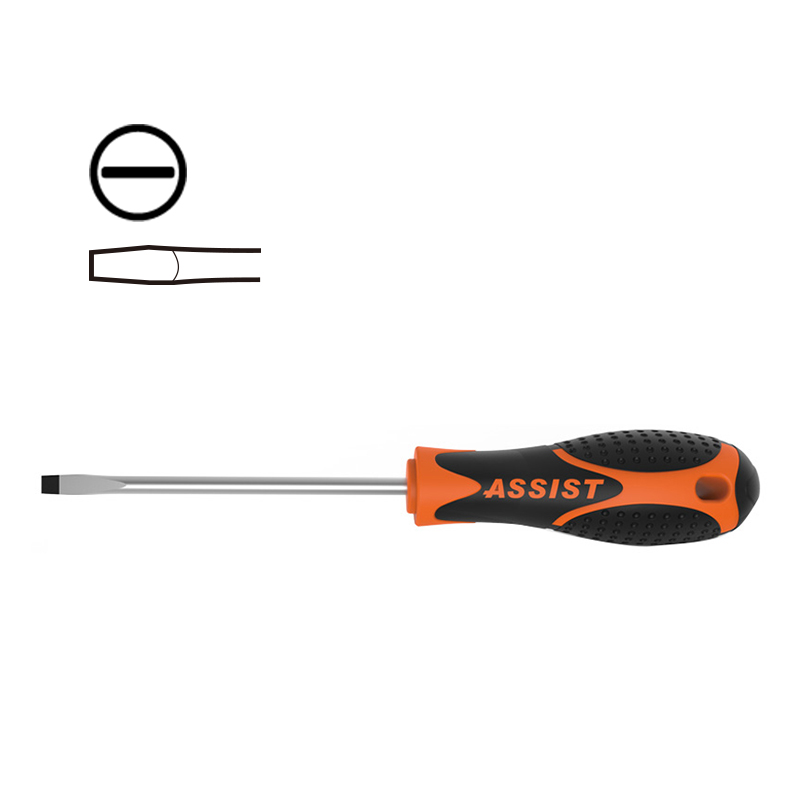

Slotted Screwdriver-M03 Screwdriver

Home > Products >Screwdriver >Series >M03 Screwdriver Return

Classification

Series

Slotted Screwdriver

Model Number：M03 Case Material：Magnetic screwdriver Size：∮3/∮4/∮5/∮6/∮8mm Handle Material：TPR+PP Head type：Slotted Material：Cr-V Hardness：54-56HRC

1. PP + TPR multi material handle is adopted, which conforms to ergonomics, and screws can be disassembled quickly. Smooth hard area can slide quickly on the hand, and soft area can transfer more torque.
2. Special dot design can increase friction effectively;
3. The surface of the cutter bar is matte chrome, the head is black chrome, and the antirust performance is better
4. The cutter bar uses the world's first vacuum heat treatment, and its comprehensive performance is 6.5 times better than that of ordinary heat treatment
5. This series of products can be used as round cutter bar

6. CRV material hardness hrc54-56. The torque exceeds the German standard,CRV is over 40%.

Product Details


Code	mm	mm	mm	mm	mm
M03DA	∮3	0.6*3.5	75	82.5*27	157.5	12
M03DA	∮3	0.6*3.5	100	82.5*27	182.5	12
M03DA	∮4	0.8*4.0	75	98.5*32.4	173.5	12
M03DA	∮4	0.8*4.0	100	98.5*32.4	198.5	12
M03DA	∮5	1.0*5.5	75	98.5*32.4	173.5	12
M03DA	∮5	1.0*5.5	100	98.5*32.4	198.5	12
M03DA	∮5	1.0*5.5	125	98.5*32.4	223.5	12
M03DA	∮5	1.0*5.5	150	98.5*32.4	248.5	12
M03DA	∮6	1.2*6.5	100	110*36	210	12
M03DA	∮6	1.2*6.5	125	110*36	235	12
M03DA	∮6	1.2*6.5	150	110*36	260	12
M03DA	∮6	1.2*6.5	200	110*36	310	12
M03DA	∮6	1.2*6.5	250	110*36	360	12
M03DA	∮6	1.2*6.5	300	110*36	410	12
M03DA	∮8	1.6*8.0	150	110*36	260	12
M03DA	∮8	1.6*8.0	200	110*36	310	12
M03DA	∮8	1.6*8.0	250	110*36	360	12
M03DA	∮8	1.6*8.0	300	110*36	410	12
M03DA	∮5	1.0*5.0	38	66*33	104	12
M03DA	∮6	1.2*6.5	38	66*33	104	12
