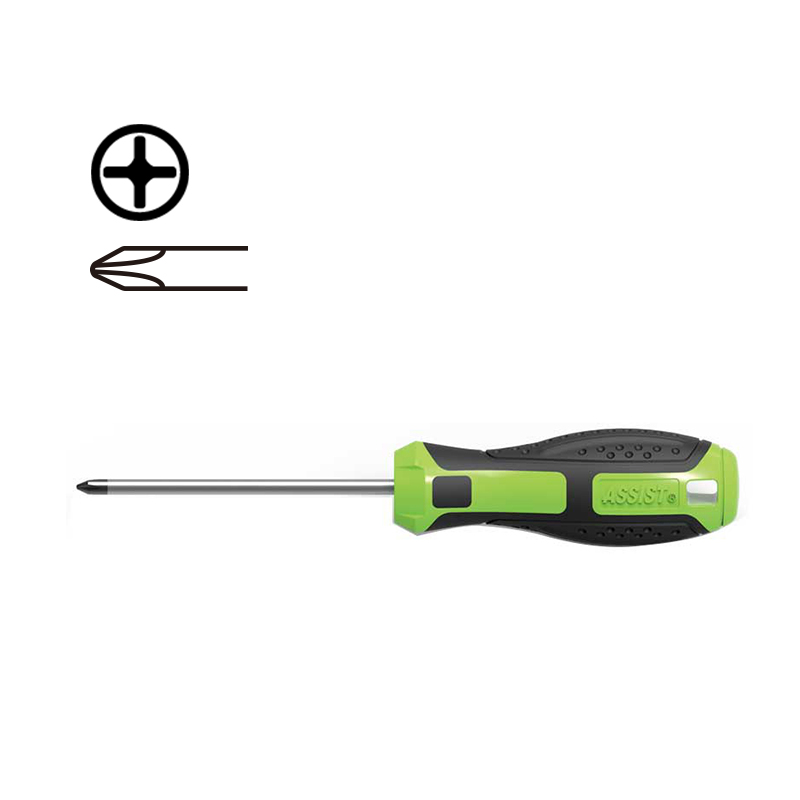

Phillips Screwdriver-M08 Screwdriver

Home > Products >Screwdriver >Series >M08 Screwdriver Return

Classification

Series

Phillips Screwdriver

Model Number：M08 Case Material：Magnetic screwdriver Size：∮3/∮4/∮5/∮6/∮8mm Handle Material：TPR+PP Head type：Phillips Material：Cr-V Hardness：≥59HRC

1. PP+TPR and multiple materials handle, with ergonomic design could remove screw fast, smooth hard area can be quickly sliding on the hand, soft grip area can transfer greater torque

2. Rubber coating with micro-fine surface structure, increase friction

3. The head of blacken rod part use precision machining to match with screw perfectly, it has best corrosion resistance

4. The rod part with vacuum heat treatment,which is initiated in China, the comprehensive performance is 6.5 times higher than ordinary heat treatment

5. CRV material hardness hrc54-56. The torque exceeds the German standard,CRV is over 40%.

Product Details


Code	mm	mm	mm	mm	mm
M08DH	∮5	PH1	38	66*33	148	12
M08DH	∮6	PH2	38	66*33	148	12
M08DH	∮3	PH0	75	98*29	185	12
M08DH	∮3	PH0	100	98*29	210	12
M08DH	∮4	PH0	75	98*29	185	12
M08DH	∮4	PH0	100	98*29	210	12
M08DH	∮5	PH1	75	110*37	193	12
M08DH	∮5	PH1	100	110*37	218	12
M08DH	∮5	PH1	125	110*37	243	12
M08DH	∮5	PH1	150	110*37	268	12
M08DH	∮5	PH1	75	110*37	185	12
M08DH	∮5	PH1	100	110*37	210	12
M08DH	∮5	PH1	125	110*37	235	12
M08DH	∮5	PH1	150	110*37	260	12
M08DH	∮6	PH2	100	110*37	210	12
M08DH	∮6	PH2	125	110*37	235	12
M08DH	∮6	PH2	150	110*37	260	12
M08DH	∮6	PH2	200	110*37	310	12
M08DH	∮6	PH2	250	110*37	360	12
M08DH	∮6	PH2	300	110*37	410	12
M08DH	∮8	PH3	150	118*39	268	12
M08DH	∮8	PH3	200	118*39	318	12
M08DH	∮8	PH3	250	118*39	368	12
M08DH	∮8	PH3	300	118*39	418	12
