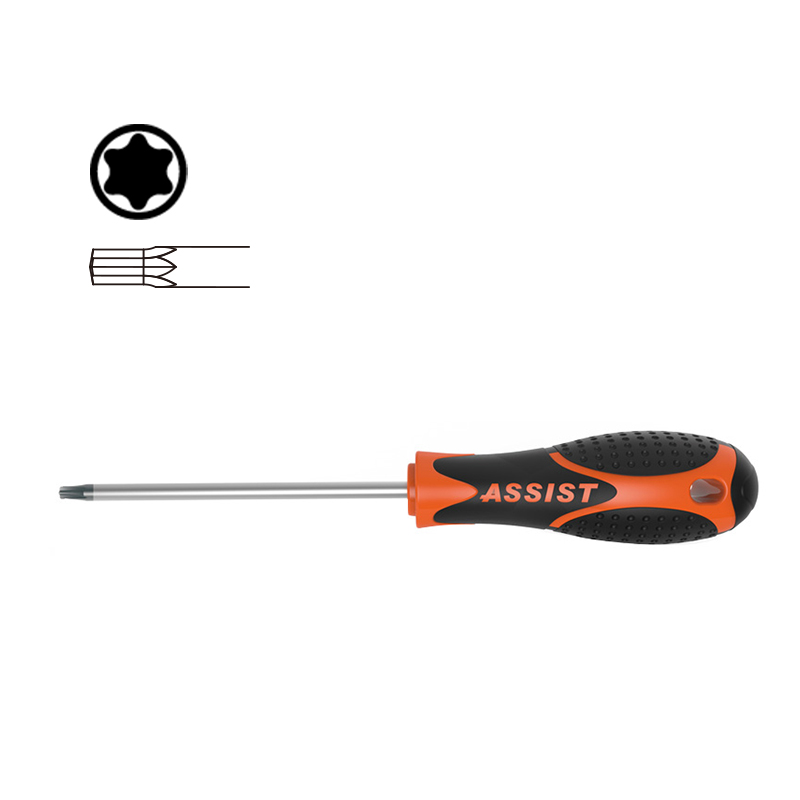

Torx single Screwdriver-M03 Screwdriver

Home > Products >Screwdriver >Series >M03 Screwdriver Return

Classification

Series

Torx single Screwdriver

Model Number：M03 Case Material：Magnetic screwdriver Size：∮3/∮4/∮5/∮6/∮8mm Handle Material：TPR+PP Head type：Torx single Material：Cr-V Hardness：54-56HRC

1. PP + TPR multi material handle is adopted, which conforms to ergonomics, and screws can be disassembled quickly. Smooth hard area can slide quickly on the hand, and soft area can transfer more torque.
2. Special dot design can increase friction effectively;
3. The surface of the cutter bar is matte chrome, the head is black chrome, and the antirust performance is better
4. The cutter bar uses the world's first vacuum heat treatment, and its comprehensive performance is 6.5 times better than that of ordinary heat treatment
5. This series of products can be used as round cutter bar

6. CRV material hardness hrc54-56. The torque exceeds the German standard,CRV is over 40%.

Product Details


Code	mm	mm	mm	mm	mm
M03DZ	∮3	T10	75	82.5*27	157.5	12
M03DZ	∮3	T10	100	82.5*27	182.5	12
M03DZ	∮4	T15	75	98.5*32.4	173.5	12
M03DZ	∮4	T15	100	98.5*32.4	198.5	12
M03DZ	∮5	T20	75	98.5*32.4	173.5	12
M03DZ	∮5	T20	100	98.5*32.4	198.5	12
M03DZ	∮5	T20	125	98.5*32.4	223.5	12
M03DZ	∮5	T20	150	98.5*32.4	248.5	12
M03DZ	∮5	T25	75	98.5*32.4	173.5	12
M03DZ	∮5	T25	100	98.5*32.4	198.5	12
M03DZ	∮5	T25	125	98.5*32.4	223.5	12
M03DZ	∮5	T25	150	98.5*32.4	248.5	12
M03DZ	∮6	T27	100	110*36	210	12
M03DZ	∮6	T27	125	110*36	235	12
M03DZ	∮6	T27	150	110*36	260	12
M03DZ	∮6	T27	200	110*36	310	12
M03DZ	∮6	T27	250	110*36	360	12
M03DZ	∮6	T27	300	110*36	410	12
M03DZ	∮6	T30	100	110*36	210	12
M03DZ	∮6	T30	125	110*36	235	12
M03DZ	∮6	T30	150	110*36	260	12
M03DZ	∮6	T30	200	110*36	310	12
M03DZ	∮6	T30	250	110*36	360	12
M03DZ	∮6	T30	300	110*36	410	12
M03DZ	∮8	T40	150	110*36	260	12
M03DZ	∮8	T40	200	110*36	310	12
M03DZ	∮8	T40	250	110*36	360	12
M03DZ	∮8	T40	300	110*36	410	12
M03DZ	∮5	T20	38	66*33	104	12
M03DZ	∮5	T25	38	66*33	104	12
M03DZ	∮6	T27	38	66*33	104	12
M03DZ	∮6	T30	38	66*33	104	12
